W series cooling equipment for indoor use
Glycol water cooling equipment (glycol 45%) for fermentation temperature control. A perfect system for small breweries and premises where the cooling equipment cannot be positioned externally, as it can be installed inside.

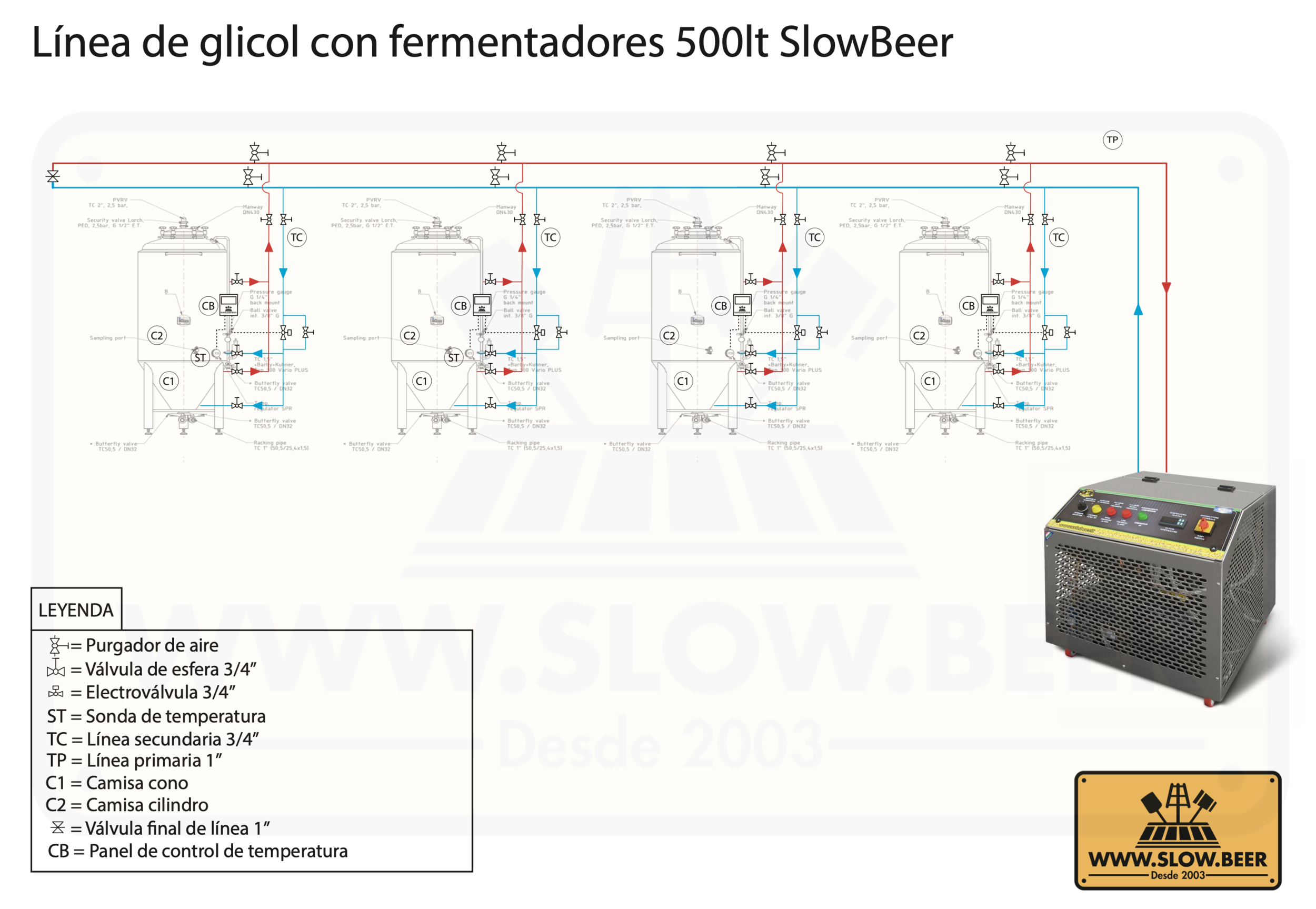

The cooling equipment can be complemented with a kit of valves and thermostats for centralized temperature control. Also available with heating elements for the heating function.
From 2.1kW to 13kW of cooling capacity.
-
Use: fermentation temperature control
Placement: indoor use
Refrigerant gas: R-404A
Glycol solution: 45% glycol, 55% water
-
Easy installation
Indoor use
Optional heat function
Configurable with solenoid valves and thermostats mounted on the equipment
Minimum working temperature -5ºC
-
Capacitor
Evaporator
Compressor
Thermostatic valve
Solenoid valve
Filter drier
Liquid indicator
High pressure switch
Low pressure switch
Glycol water pump
Flusostat
Electrical panel
Support chassis
Fan
Control panel
Accumulator of glycol water
-
Solenoid valves with thermostats and probe for each line (consult availability according to model in the comparative data sheet)
Option heat with resistors
Food grade polypropylene glycol (25lt. carafe)
W series refrigeration equipment comparison sheet.
(*1) Agua glicolada en entrada = 12° y temperatura ambiente < 25°
(*2) Agua glicolada en entrada = -6° y temperatura ambiente < 25°
