Service tank with bag without thermo-insulating bag

3000,00 €

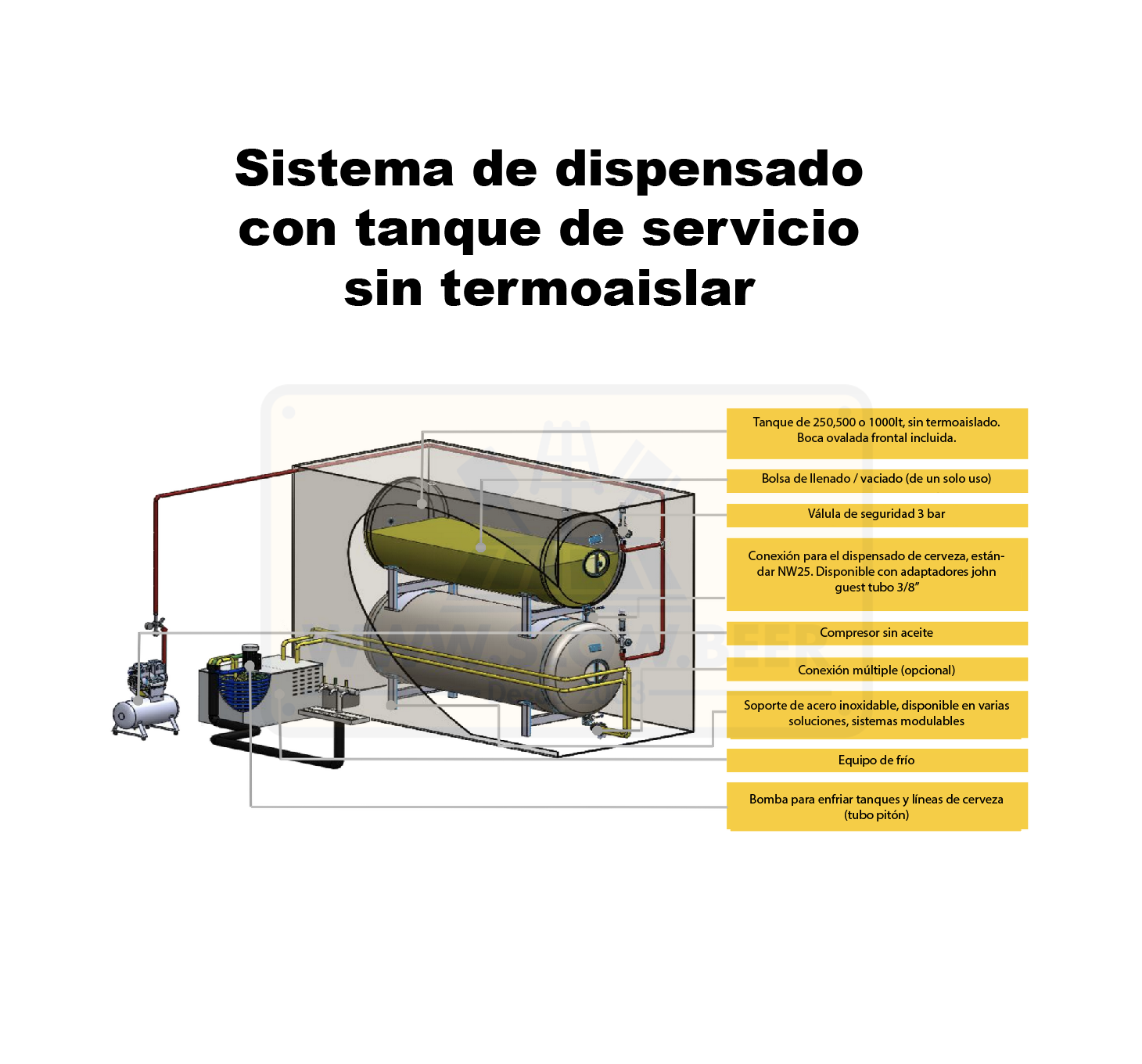

Horizontal tanks for beer dispensing directly from the tank, the bag system allows to preserve the beer in the best possible way and to use an air compressor for dispensing, avoiding the use of CO2 cylinders.

This service tank is not insulated, it is used to dispense from the cold chamber, it is available with a capacity of 250lt, 500lt or 1000lt and with several modular support possibilities.

Horizontal tanks for beer dispensing directly from the tank, the bag system allows to preserve the beer in the best possible way and to use an air compressor for dispensing, avoiding the use of CO2 cylinders.

This service tank is not insulated, it is used to dispense from the cold chamber, it is available with a capacity of 250lt, 500lt or 1000lt and with several modular support possibilities.

  • Useful capacity: from 250lt to 1.000lt

    Dimensions: see comparative data sheet

    Weight: see comparative data sheet

    Maximum working pressure: 3 bar

    Material: stainless steel AISI304

  • Sustainable: the only consumable is the internal bag, no intensive use of cleaning products is required.

    Cost-effective: once the investment has been recouped, it minimizes the costs of filling personnel and cleaning products

    Ready for use

  • Front manhole

    Safety valve 3 bar

    Pressure gauge 0-4Bar

    CO2 / compressed air connection 5/8" thread

    Liquid outlet NW25

  • Adapter to DIN32 or Tri-clamp

    Box of bags (20 units)

    Multiple beer outlet connector: 2/4/6 5/8" threaded outlets with john guest 3/8" tube

    Support structures: see photo

    Vinyl logo perosnalized brewery

    Oil-free compressor

Comparative sheet of stainless steel service tanks, without thermo-insulation and without support (to consult the dimensions with the supports open the photos in the gallery).
