Thermo-insulated atmospheric fermenters
Our line of 60º thermo-insulated cylindrical-conical atmospheric fermenters, manufactured in AISI304 stainless steel, with double jacket (cone and cylinder) and expanded polyurethane thermo-insulation protected by an AISI304 stainless steel wall.
It differs from the non-thermally insulated model because of the insulation that drastically reduces the temperature losses of the fermenter caused by the heat dissipated during the wort processing.
Thanks to these types of fermenters you will have better energy efficiency, since the tank does not have to continuously contrast the ambient heat in the hottest months or during brewing.
The initial cost is higher than the other model, but it is quickly amortized by saving on electricity.
Our line of 60º thermo-insulated cylindrical-conical atmospheric fermenters, manufactured in AISI304 stainless steel, with double jacket (cone and cylinder) and expanded polyurethane thermo-insulation protected by an AISI304 stainless steel wall.
It differs from the non-thermally insulated model because of the insulation that drastically reduces the temperature losses of the fermenter caused by the heat dissipated during the wort processing.
Thanks to these types of fermenters you will have better energy efficiency, since the tank does not have to continuously contrast the ambient heat in the hottest months or during brewing.
The initial cost is higher than the other model, but it is quickly amortized by saving on electricity.
Our line of 60º thermo-insulated cylindrical-conical atmospheric fermenters, manufactured in AISI304 stainless steel, with double jacket (cone and cylinder) and expanded polyurethane thermo-insulation protected by an AISI304 stainless steel wall.
It differs from the non-thermally insulated model because of the insulation that drastically reduces the temperature losses of the fermenter caused by the heat dissipated during the wort processing.
Thanks to these types of fermenters you will have better energy efficiency, since the tank does not have to continuously contrast the ambient heat in the hottest months or during brewing.
The initial cost is higher than the other model, but it is quickly amortized by saving on electricity.
-
Useful capacity: from 250lt up to 2.000lt
Dimensions: see comparative data sheet
Weight: see comparative data sheet
Working pressure: atmospheric
Material: stainless steel AISI304
-
Designed according to brewing technology: cylindrical-conical design, AISI304 steel
High quality finishes
Interior mirror polished finish 2R BA with roughness less than 0.8 μm
High energy efficiency
Ready for use
-
Adjustable AISI304 stainless steel legs with tubular connection
Nameplate
Probe holder sleeve
Double jacket on cone and cylinder (working pressure 3 bar, test pressure 6 bar)
Expanded polyurethane thermal insulation
Upper manhole 400mm
Rising main with 1" Tri-Clamp connection and butterfly valve
CIP cleaning ball
Partial and total discharge with butterfly valves TC 1.5".
Sampling tap
Pressure relief valve DN50
Documentation: technical drawings, maintenance and operation manual, certificate of conformity, warranty, etc.
-
DIN32 connections
Temperature controller with probe and solenoid valve
Must viewer
Inline mechanical filter with 1 mm holes

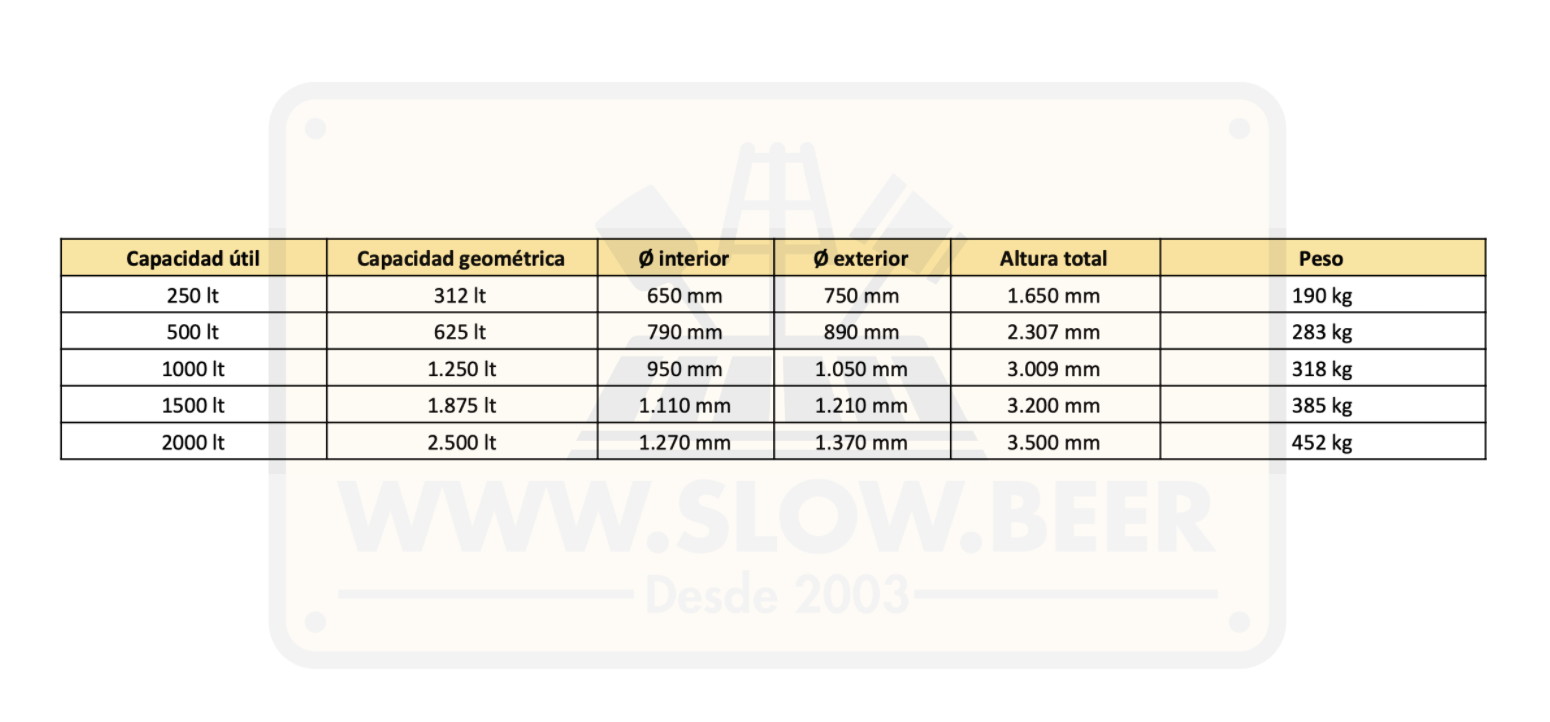

Comparative data sheet of isolated atmospheric fermenters currently in production.
